Legrand radiant Digital Countdown Timer — White & 5-30 Min Intervals

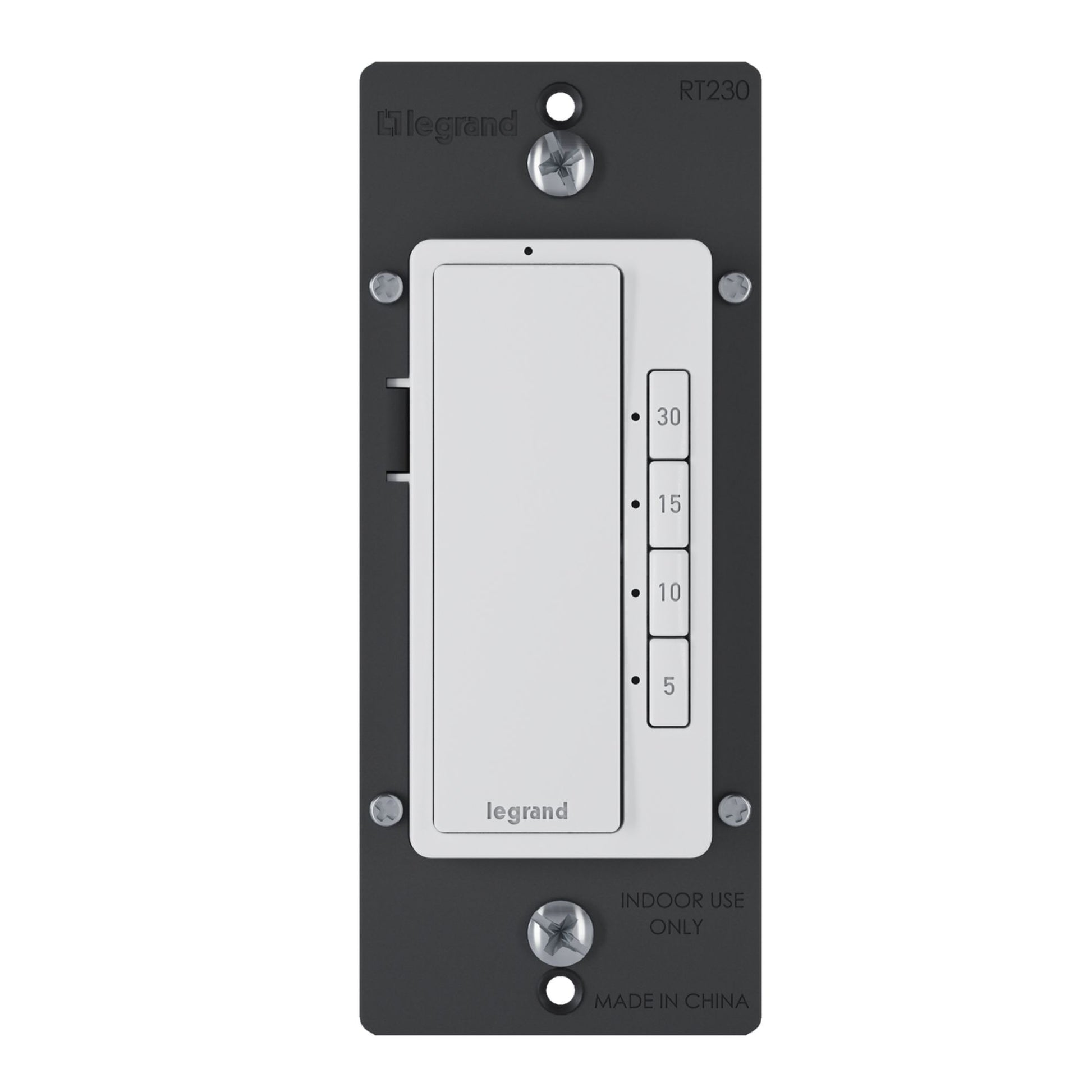

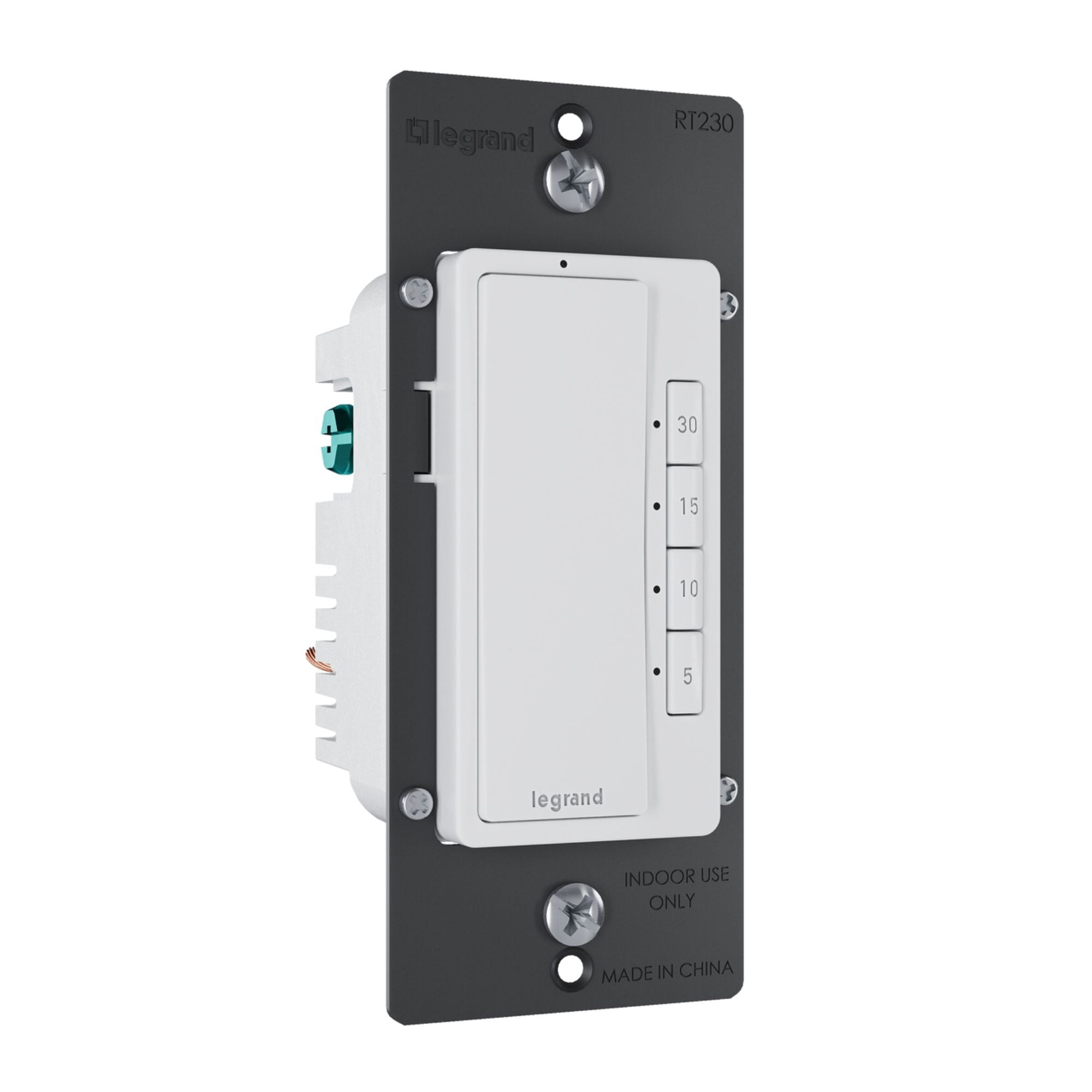

The Legrand RT230W is a digital countdown timer switch in a white satin finish, designed for precise control of lighting and fan applications. This single-pole timer offers four preset intervals of 5, 10, 15, and 30 minutes, making it ideal for areas like bathrooms, garages, and closets. It supports a wide range of load types, including LED, CFL, ELV, MLV, Incandescent, Fluorescent, and 1/4HP motor loads, with a voltage rating of 120/277 VAC.

Key Features

• Voltage: Operates at 120/277 VAC, suitable for various residential and commercial applications.
• Load Ratings: 800VA at 120V and 1800VA at 277V, accommodating multiple load types.

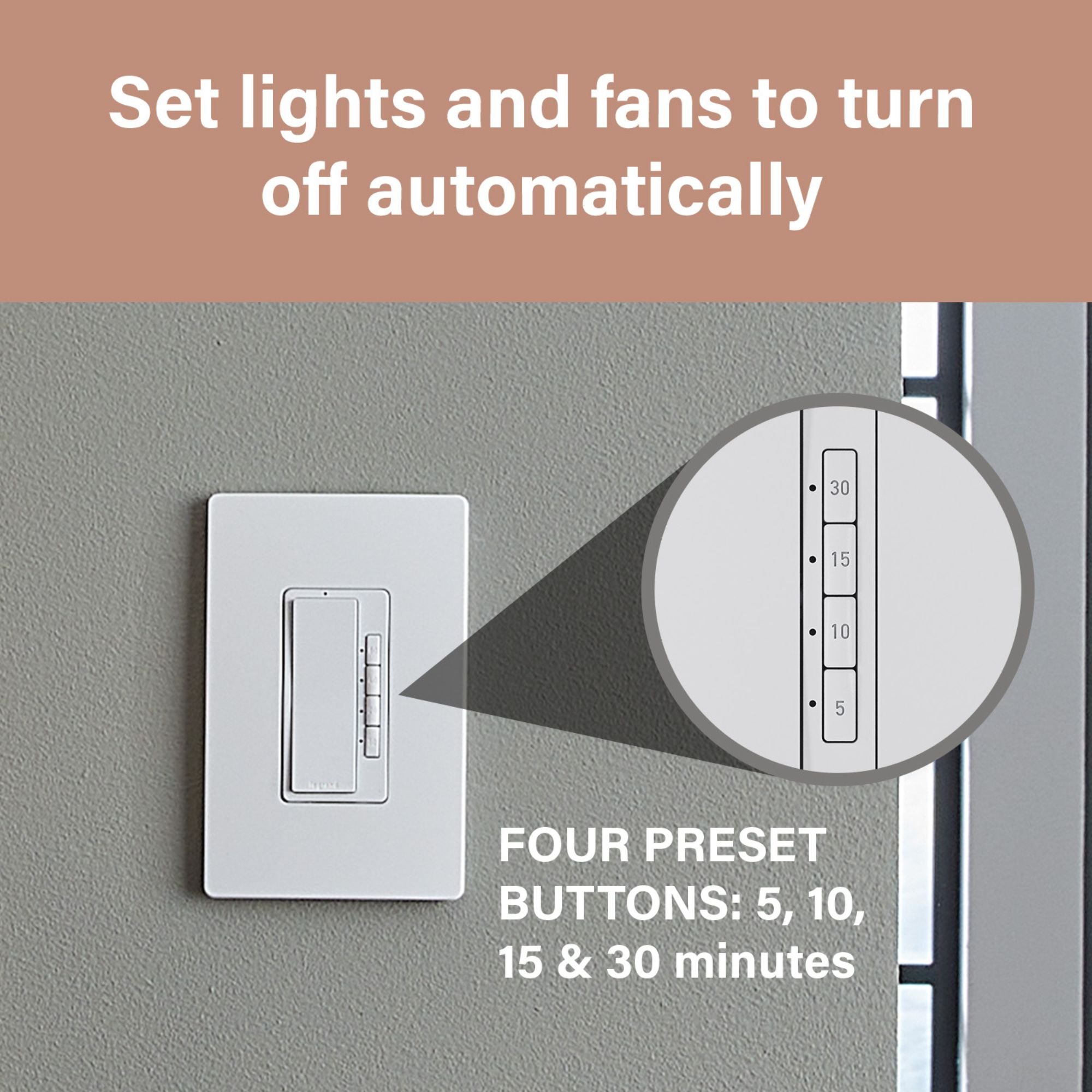

• Timer Intervals: Offers 4-button countdown with 5, 10, 15, and 30-minute options.
• Neutral Wire Requirement: Requires a neutral wire for proper operation.
• Switch Style: Rocker switch with manual on/off functionality.
• Locator Light: Illuminates when the switch is off, aiding in locating the switch in the dark.
• Installation: Replaces standard light or fan switches with flying leads and ground screw connections.
• Material: Constructed from durable steel and thermoplastic materials.
• Certifications: UL, CULUS, ROHS, and NEMACONF compliant.
• Energy Efficiency: Designed to reduce unnecessary power usage, contributing to energy savings.
• Dimensions: Measures 1.7 in. width, 1.9 in. depth, and 4.2 in. height.

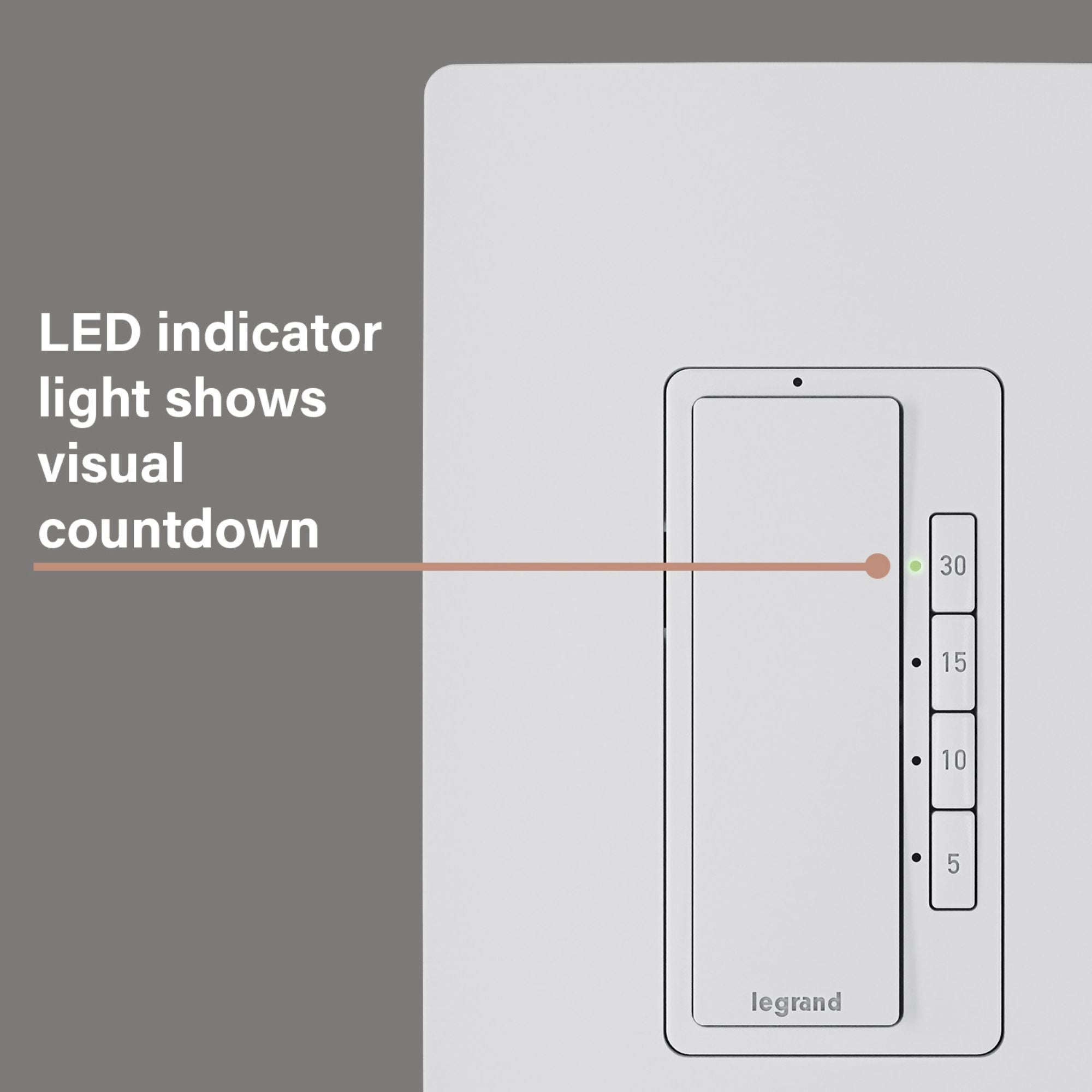

• Special Features: Includes countdown LED indication and a locator light for convenience.

Construction & Interface

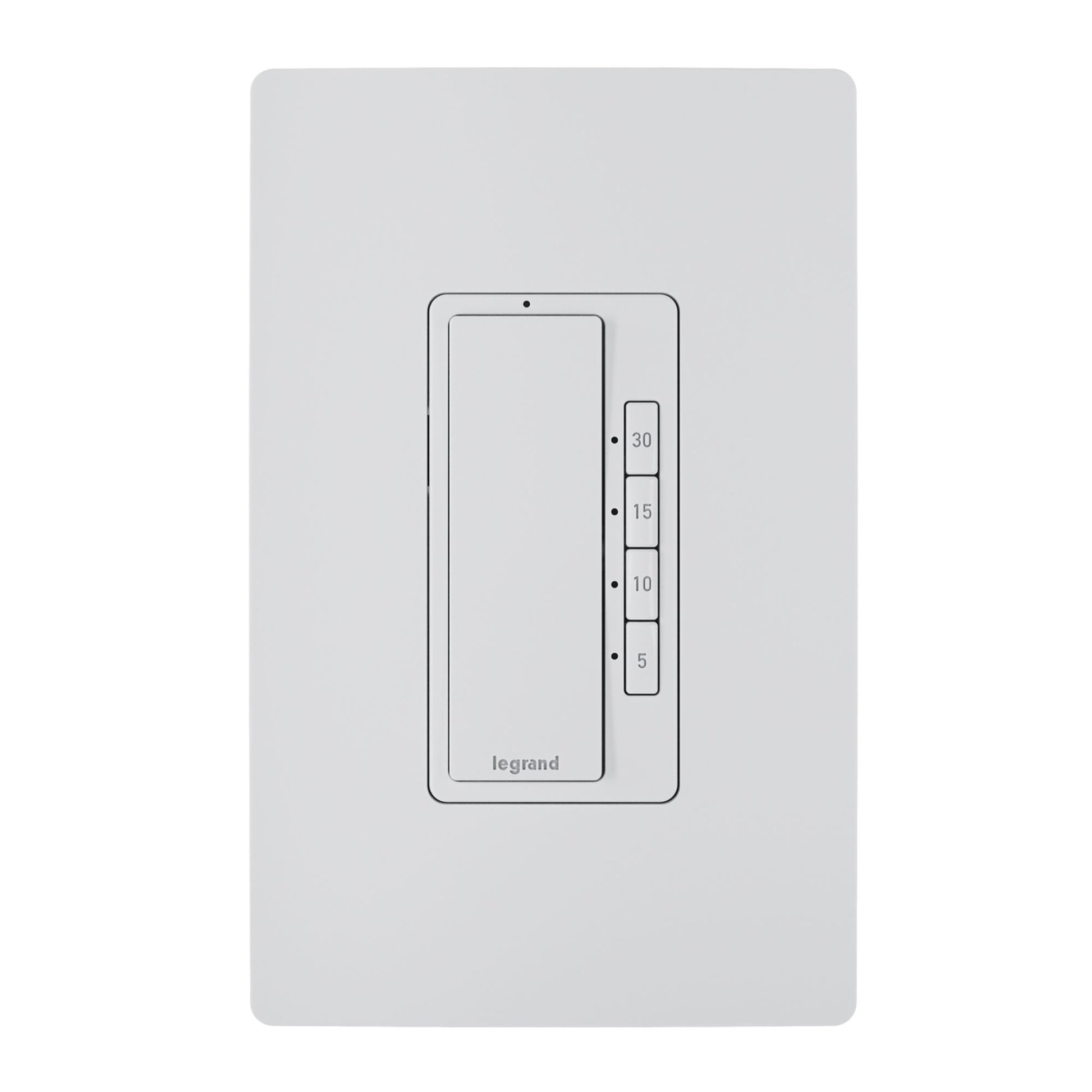

The timer features a sleek white satin finish and a rocker switch style, with a locator light for easy identification in the dark. It is designed for wall box installation and requires a screwless wallplate from the radiant Collection, sold separately.

Sensor, Smart & Timer Capabilities

This digital countdown timer offers precise control with four preset intervals, ensuring that lights and fans are not left on unnecessarily. The manual on/off paddle switch provides additional convenience, while the indicator light flashes one minute before each time delay transition.

Wiring & Installation

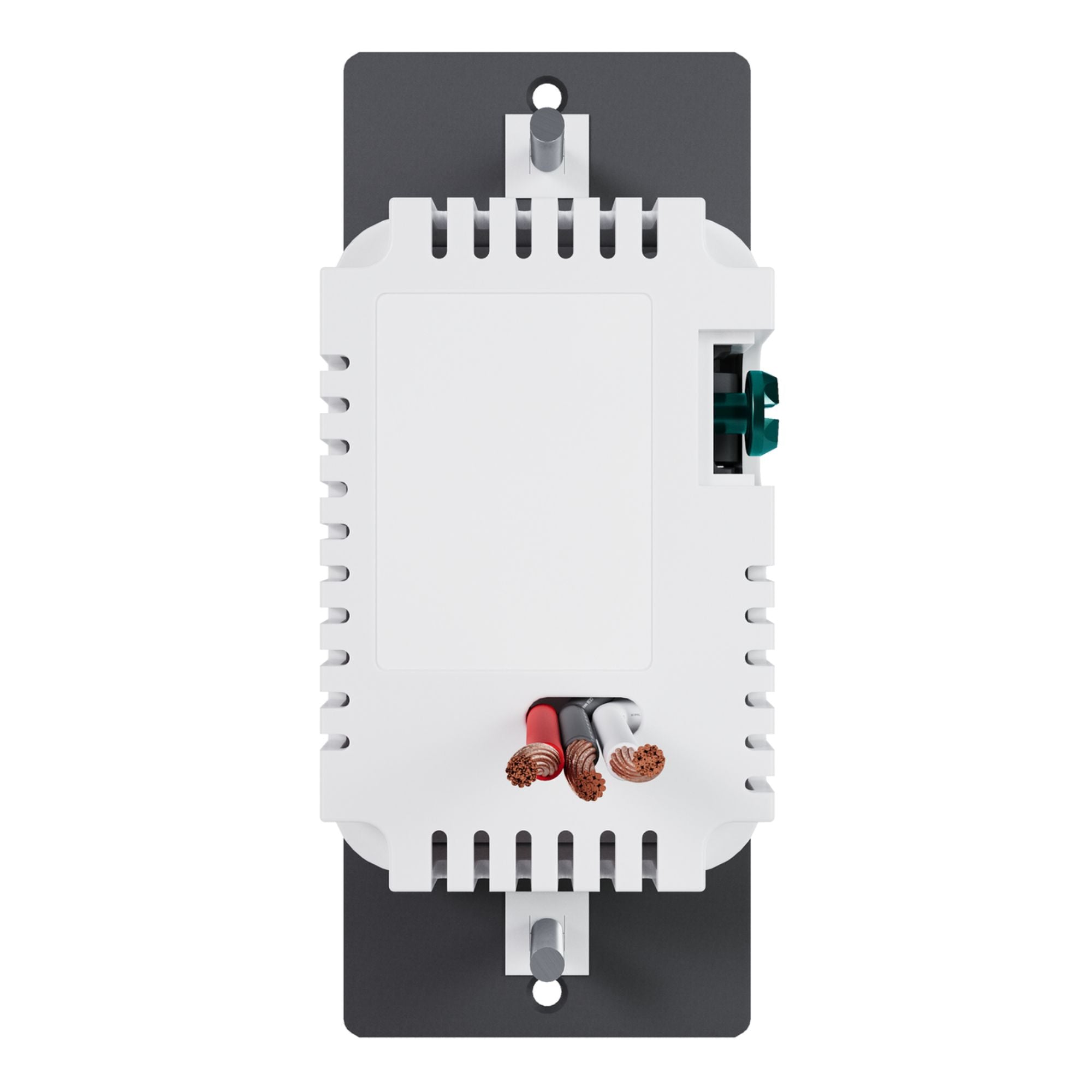

The Legrand RT230W requires a neutral wire for installation and is designed for single-pole applications. It connects using flying leads and a ground screw, making it compatible with existing wiring setups. The timer easily replaces standard switches or older spring-wound timers.
