LED Emergency Drivers, 20 Watts Output, 55-200V DC High Output, 90 Minutes, Self-Diagnostic, Dual Flex
Usually Ships in 1 - 2 Business Days
Free Shipping Over $99
Shipping & Returns
Shipping Policy Message
Free Shipping Over $99
Return Policy Message
30 Days Return Policy

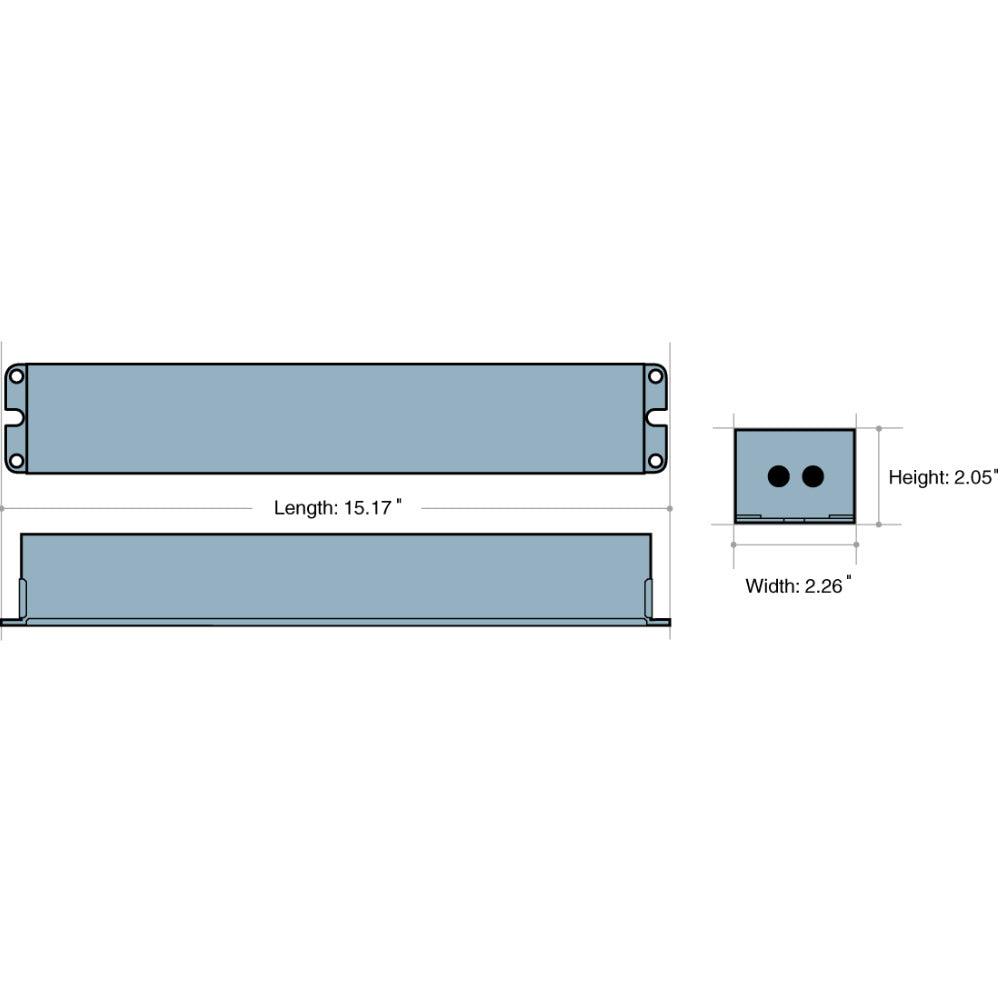

Dimensions & Measurements
Length :
Width :
Height :
Maximum height :
Shade height : in
Shade width : in
Shade length : in
Shade diameter : in
PRODUCT OVERVIEW

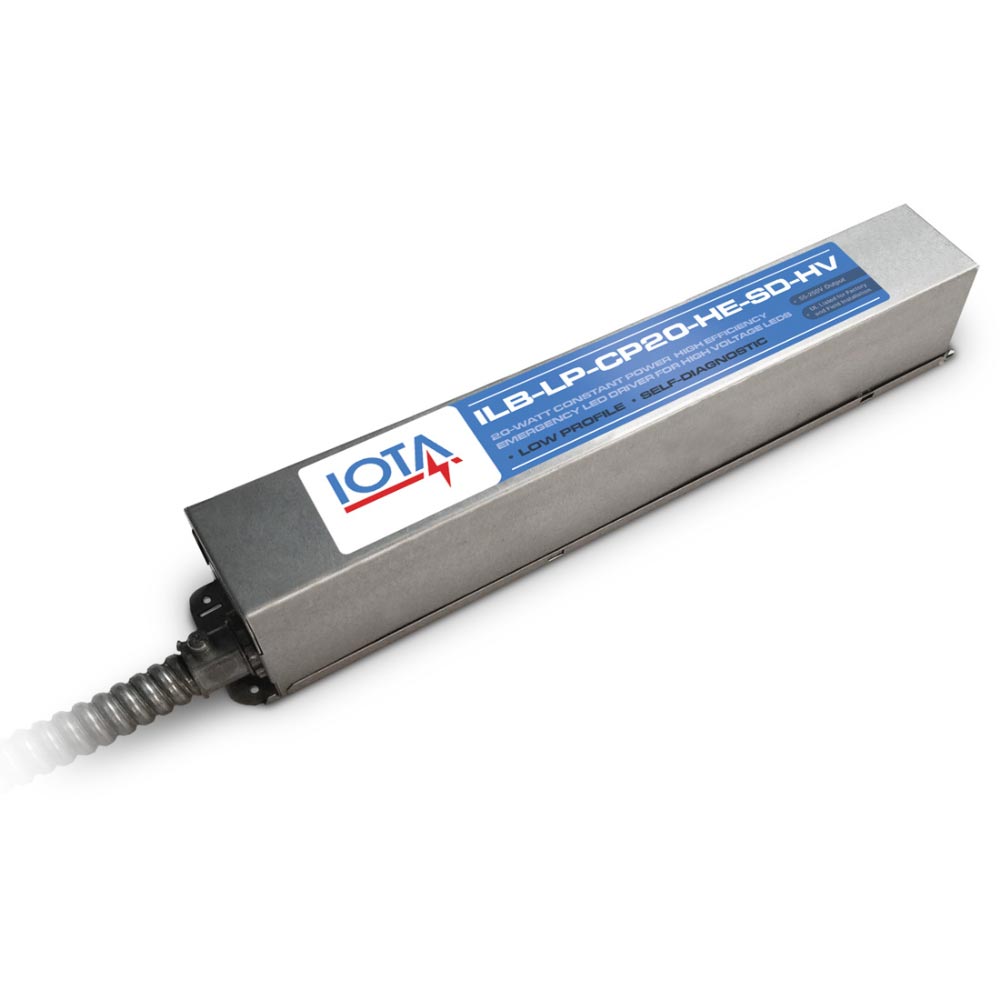

The ILBLP-CP20-HE-SD-HV-A-M5 is a UL Listed emergency LED driver for field and factory installation that allows a fixture with 55-200VDC Non-Class 2 LED lighting loads to be used for both normal and emergency operation. In the event of a power failure, the ILBLP-CP20-HE-SD-HV-A-M5 switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single enclosure with the option of either single or dual flexible conduit for wiring to the fixture and test accessories. The patented Constant Power design of the unit maintains the rated output wattage to the LED array even as the battery voltage diminishes, resulting in a constant illumination level for the entire emergency runtime. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard. Self-diagnostic status is communicated via the illuminated single-piece test accessory, which can be mounted up to 25 ft. from the unit.
- 20 Watts Constant Power
- 55-200 VDC Output
- Auto-Sensing Non-Class 2 Output
- Constant Power Performance
PRODUCT OVERVIEW
PRODUCT OVERVIEW
The ILBLP-CP20-HE-SD-HV-A-M5 is a UL Listed emergency LED driver for field and factory installation that allows a fixture with 55-200VDC Non-Class 2 LED lighting loads to be used for both normal and emergency operation. In the event of a power failure, the ILBLP-CP20-HE-SD-HV-A-M5 switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single enclosure with the option of either single or dual flexible conduit for wiring to the fixture and test accessories. The patented Constant Power design of the unit maintains the rated output wattage to the LED array even as the battery voltage diminishes, resulting in a constant illumination level for the entire emergency runtime. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard. Self-diagnostic status is communicated via the illuminated single-piece test accessory, which can be mounted up to 25 ft. from the unit.
Manufacturer Resources
Product information
| Brand | IOTA |
|---|---|
| Category | |
| Product Type | Emergency Ballast |
| MPN | ILBLP CP20 HE SD HV A M5 |
| UPC | 193048343649 |
| Power Supply Type |
Characteristics
Electrical and Operational
| Input Voltage | |
|---|---|
| Operating temperature | 0C to 55C |
| Output Voltage | |
| Wattage Rating | 20.0 |
Warranty and Certifications
| Location rating | |
|---|---|
| Product Warranty | 5 Years |
