GLT MLH LED Linear High Bay — 130W — White
Hurry up, only 6 items left in stock.
About this item
About this item
- 18,600 lm @ 130W / 5000K — 143 lm/W Peak Efficacy — Semi-Frosted Diffuser: Maximum lumen output configuration — direct retrofit replacement for 4-lamp F54T5HO or 400W HID at a fraction of the energy cost. Semi-frosted diffuser delivers peak lumens while maintaining visual comfort.
- DLC Listed — Utility Rebate Eligible: DLC Listed certification qualifies this fixture for utility rebate programs across most U.S. markets. Verify eligibility at designlights.org by searching model number MLH-18L-UV-50K-D10.
- 1–10V Dimming + Optional PIR Sensor — Full Energy Control Stack: Integrated 1–10V driver pairs with optional MLHF-MS PIR occupancy sensor and optional emergency battery backup — building a complete energy management and life-safety solution from a single fixture platform.
- UL Damp Location + −40°C Cold-Start — Built for Demanding Environments: UL Listed for damp locations and rated from −40°C / −40°F to 50°C / 122°F — engineered for humid manufacturing, cold storage, and harsh industrial environments.
- Three Diffuser Options — One Fixture Platform: Semi-frosted (18,600 lm / 143 lm/W), prismatic (17,600 lm / 135 lm/W for glare control), or frosted (17,200 lm / 132 lm/W for maximum uniformity) — specify by SKU suffix for the right distribution pattern on every job.
We process payments securely and do not store credit card information.
Description
Description

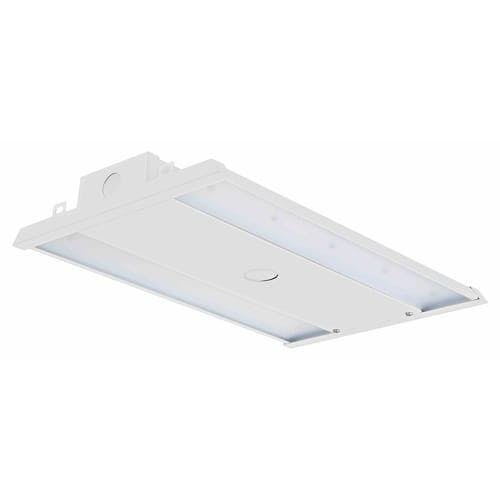

GLT MLH LED Linear High Bay — 130W — White
The MLH-18L-UV-50K-D10 is a compact LED linear high bay delivering 18,600 lumens at a peak efficacy of 143 lm/W at 130W and 5000K with a semi-frosted diffuser for maximum lumen output. It operates on 120–277V with 1–10V dimming, carries a UL Damp Location listing, and is certified DLC Listed for utility rebate eligibility. Designed for commercial, retail, and institutional high-bay lighting applications, this fixture features a sensor receptacle for optional PIR sensor installation, optional emergency battery backup, and a rated life of 50,000 hours. Direct retrofit replacement for 4-lamp F54T5HO or 400W HID fixtures. Backed by a 5-year limited warranty.
Key Features
- Lumen Output: 18,600 lm @ 130W / 5000K with semi-frosted diffuser — 143 lm/W efficacy
- CRI: 70 CRI across all configurations
- Color Temperature: 5000K fixed — crisp daylight spectrum for task and inspection lighting
- Diffuser Type: Semi-frosted — maximizes lumen output; prismatic and frosted diffuser options also available
- Dimming: 1–10V continuous dimming via integrated LED driver
- Input Voltage: 120–277V; constant current LED driver (850mA @ 90W · 1200mA @ 130W)
- Location Rating: UL Listed for damp locations
- Ambient Operating Temperature: −40°C / −40°F to 50°C / 122°F
- Emergency Battery (Optional): Compatible with optional emergency battery backup — operating temperature with battery: 0°C to 50°C (+32°F to +122°F)
- Rated Life: 50,000 hours projected lifespan
- Sensor-Ready: Optional PIR sensor for occupancy/vacancy sensing and energy savings
- Certifications: UL Damp Location · DLC Listed · TAA Compliant · RoHS
- Construction: Advanced thermal management aluminum alloy housing with white coat finish; semi-frosted polycarbonate diffuser panel
- Warranty: 5-year limited
Performance & Light Output
All configurations deliver 70 CRI. Projected lifespan 50,000 hours. Color temperature fixed at 5000K for this SKU.
At 130W / 5000K: 18,600 lm (Semi-Frosted / 143 lm/W), 17,600 lm (Prismatic / 135 lm/W), 17,200 lm (Frosted / 132 lm/W)
Lens & Optics
Three diffuser types are available for the MLH series — this SKU ships with the semi-frosted diffuser for maximum lumen output. The semi-frosted diffuser delivers peak lumens and efficacy. The prismatic diffuser reduces glare for environments requiring controlled light distribution. The frosted diffuser provides the most uniform light output, ideal for retail and office-adjacent spaces. Light transmission varies by diffuser type — see Performance & Light Output section for per-diffuser lumen data.
Smart & Control Features
Standard dimming via 1–10V continuous driver — compatible with any 1–10V wall dimmer or building automation system. Optional sensor and control accessories:
- PIR Sensor (MLHF-MS): Optional screw-in PIR sensor for occupancy/vacancy sensing and automatic dimming — security and energy savings
- Remote Control (DIVA-RC100): Optional remote for sensor setting adjustments in the field
Electrical
Integrated LED driver with 1–10V dimming. Input voltage: 120–277V. Driver current: 1200mA @ 130W (120–277V). Input current at 130W: 1.08A @ 120V · 0.63A @ 208V · 0.54A @ 240V · 0.47A @ 277V. Mercury-free, RoHS-compliant components. TAA Compliant. For emergency backup, use optional emergency battery accessory (GLT-EM-890 or MLH-EB15W) — emergency battery operating temperature: 0°C to 50°C.
Construction
Advanced thermal management aluminum alloy housing with white coat finish. Semi-frosted polycarbonate diffuser panel for maximum lumen delivery. Threaded conduit for support wire routing and easier wire connections. Ambient operating temperature: −40°C / −40°F to 50°C / 122°F. Dimensions (130W body): 9.84" W × 16.54" L × 1.75" H. Weight: 4.63 lb.
Installation & Mounting
Steel wire rope included for pendant mounting. Surface mounting also available. Optional accessories (purchased separately):
- Wire Guard: Optional wire guard for fixture protection
- Pendant Hanger (MLH-SMB1): Optional pendant hanger kit
- Emergency Battery Backup (GLT-EM-890 · MLH-EB15W): Optional emergency battery — constant wattage output during power outages; operating temperature 0°C to 50°C
- PIR Sensor (MLHF-MS): Optional PIR occupancy/vacancy sensor
- Remote Control (DIVA-RC100): Optional remote for field sensor adjustment
- Power Strips (PS1055LCP-M5 · PS1555LCP-M5): Optional power strip accessories
Certifications & Rebates
UL Listed for damp locations. DLC Listed certified — to verify rebate eligibility with your utility provider, visit designlights.org and search by model number MLH-18L-UV-50K-D10. TAA Compliant. RoHS compliant.
Typical Applications
- Warehouses & Distribution Centers (20–35 ft Ceilings): 18,600 lm at 130W replaces 400W HID on 120–277V infrastructure; 5000K daylight spectrum maximizes visibility across wide storage aisles
- Manufacturing & Assembly Plants: Semi-frosted diffuser delivers maximum lumens for task and inspection lighting on production floors; DLC Listed qualifies for utility rebates on large-scale retrofits
- Gymnasiums & Recreation Centers: UL Damp Location listing suits high-humidity environments; linear form factor provides even coverage across gym floors
- Retail Big-Box & Commercial Interiors: 1–10V dimming enables energy management across sales floors; 5000K CCT enhances product color rendering and visibility
- Factories & Industrial Facilities: −40°C cold-start capability and aluminum alloy housing handle demanding industrial environments; optional PIR sensor adds occupancy-based energy savings
What's Included
- 1× GLT MLH-18L-UV-50K-D10 LED Linear High Bay — 130W, 5000K, Semi-Frosted Diffuser, White
- Steel wire rope for pendant mounting
