UFO High Bay LED Light, 100W, 12700 Lumens, 4000K/5000K, 120/277V, Black
UFO High Bay LED Light, 100W, 12700 Lumens, 4000K/5000K, 120/277V, Black
Out of stock
About this item
About this item
- Available for both hook mounting and surface mounting
- Comes with a 0-10V dimming driver, for dimming range of 100% to 0%
- Sealed die-casting profile for indoor and outdoor applictions
- UL listed for wet locations
- Offer four selectable lumen output (40%/60%/80%/100%)
Description
Description
The GLT HBU-97PS-UV-CCT UFO High Bay LED Light delivers professional-grade illumination for commercial, retail, and institutional spaces including gymnasiums, factories, and warehouses. This versatile fixture features selectable wattage options (97W or 215W) and adjustable CCT (4000K/5000K) to meet diverse lighting requirements.
Key Features:
- Selectable wattage: 97W (12700lm at 4000K, 12300lm at 5000K)
- 0-10V dimming capability with adjustable output from 100% down to 40%
- Sealed die-casting profile suitable for indoor and outdoor applications
- Best choice for replacing 250W MH and 400W MH fixtures
- Operating temperature range: -40°C to 50°C (-40°F to 122°F)

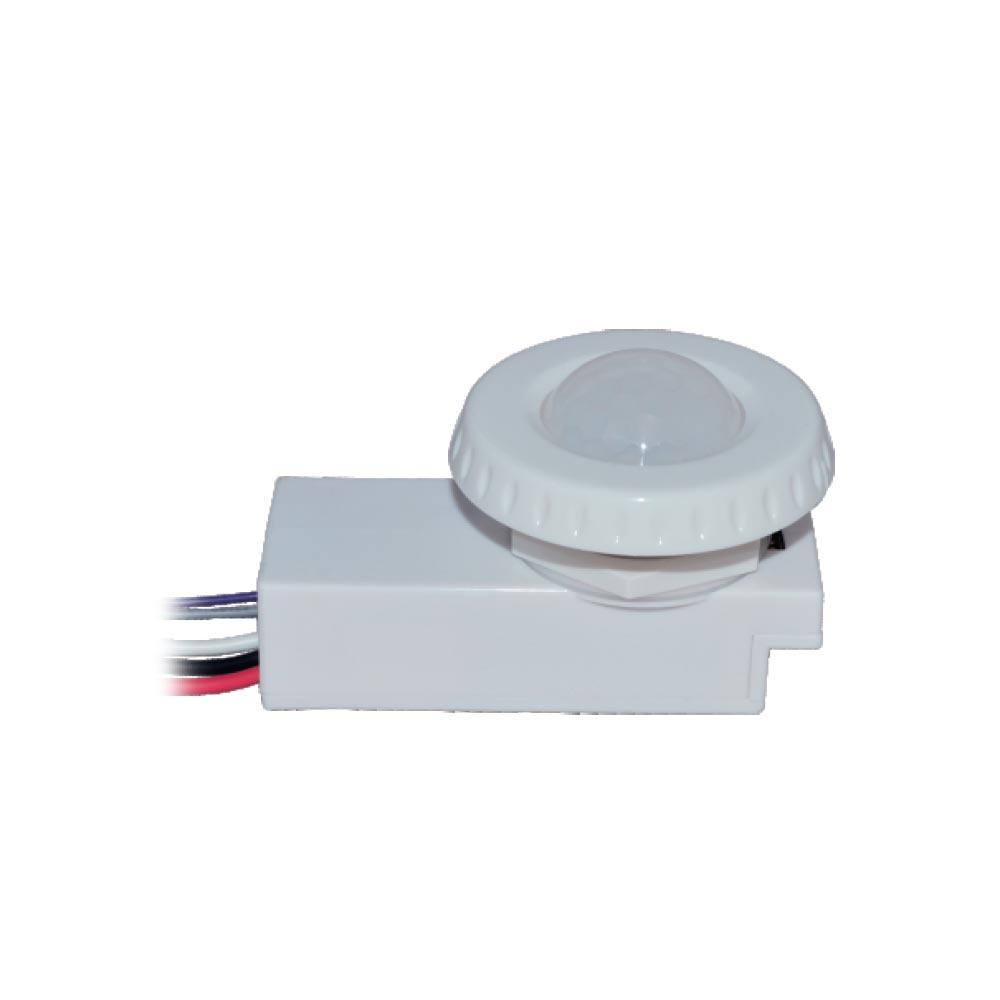

- Optional microwave sensor for enhanced energy savings
- CCT adjustable via dial (4000K/5000K)
- UL Listed and Wet Location rated for maximum versatility
- 5-year warranty for long-term reliability
The GLT HBU-97PS-UV-CCT operates on 120-277VAC and includes optional CC receiver/regulator with four selectable lumen outputs (40%, 60%, 80%, 100%) and two CCT options (4000K/5000K). Installation accessories available for both hook mounting and surface mounting configurations, with brackets that allow directional adjustment to illuminate any area needed.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the recommended lumen range for LED high bay lights based on ceiling height?
What is the recommended lumen range for LED high bay lights based on ceiling height?
For ceilings between 10-15 feet, it is recommended to use LED high bay lights with 10,000 to 15,000 lumens. For heights of 15-20 feet, lights should have 16,000 to 20,000 lumens. For much higher ceilings, around 25-35 feet, choosing lights with 33,000 lumens is ideal. Remember, the spacing between the lights also plays a crucial role in effective lighting.
How should I select the appropriate high bay LED lights for my warehouse?
How should I select the appropriate high bay LED lights for my warehouse?
When choosing high bay LED lights, consider the color temperature and the mounting height. For task lighting, a cooler color temperature between 5000K and 6500K is preferable, whereas for ambient lighting, a warmer range of 3000K to 4000K is recommended. Ensure the light's specification matches the height at which it will be mounted.
What ceiling height is appropriate for high bay lighting fixtures?
What ceiling height is appropriate for high bay lighting fixtures?
High bay lighting fixtures are suitable for ceiling heights ranging from 20 to 45 feet. In contrast, low bay fixtures are designed for lower ceiling heights of 12 to 20 feet. Choosing the correct fixture based on your ceiling height is crucial for optimal illumination.
What spacing should be used between LED high bays?
What spacing should be used between LED high bays?
The spacing between LED high bays can vary depending on the desired brightness. For brighter illumination, a spacing of 18 to 20 feet is recommended. For normal lighting conditions, a spacing of up to 16 feet should suffice. Note that higher mounting heights may require lights with higher power.
What lighting controls are available for LED high bays?
What lighting controls are available for LED high bays?
Dimming modules, motion sensors and daylight sensors are the most popular light controls for LED high bay lights. Dimming modules enable the light level of the high bay to be manually dimmed to a lower level to save energy. Motion sensors allow automatic on function when motion is detected and off function when there is no activity. Daylight sensors automatically adjust the light level of the high bay to be higher or lower depending on detected ambient light from outside.
