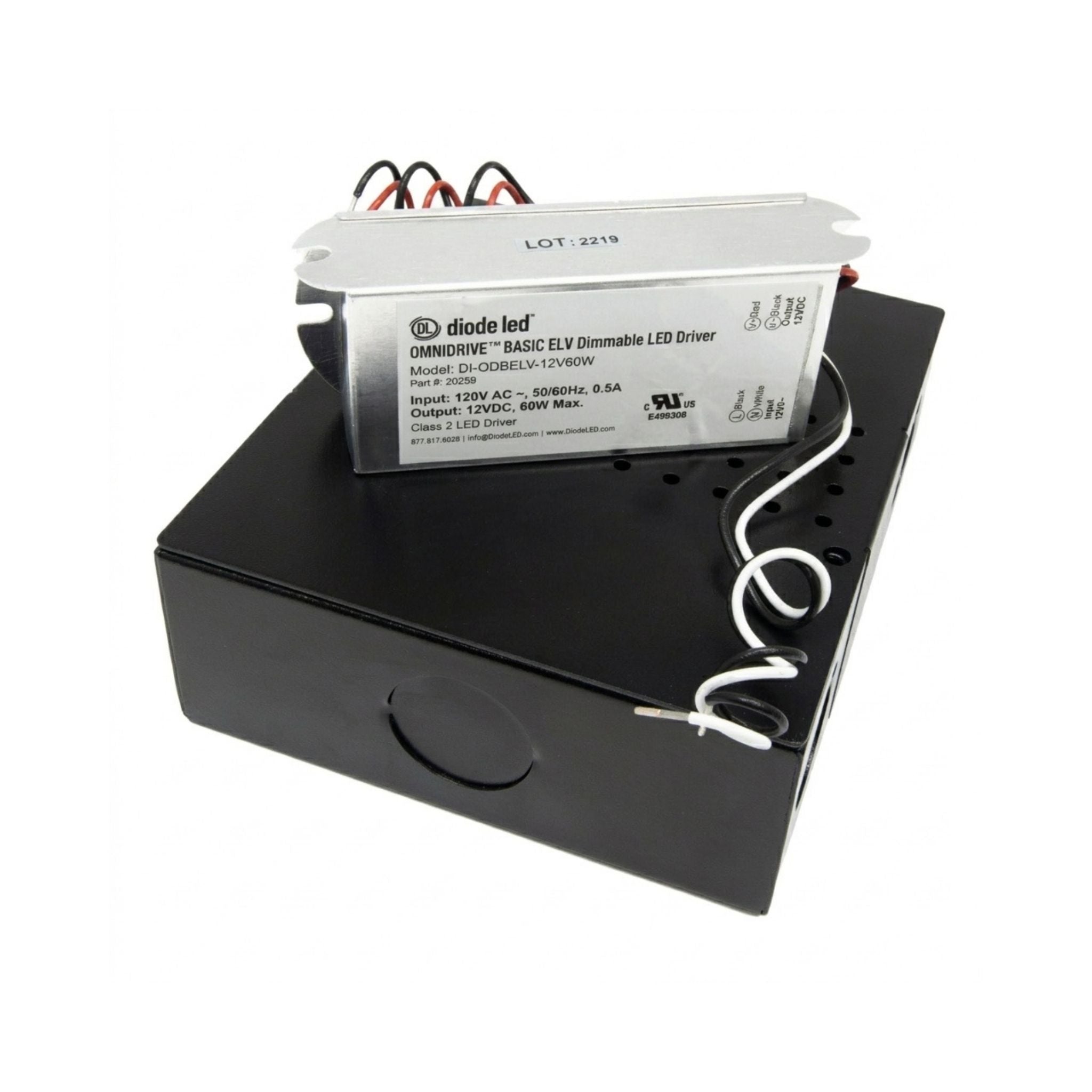

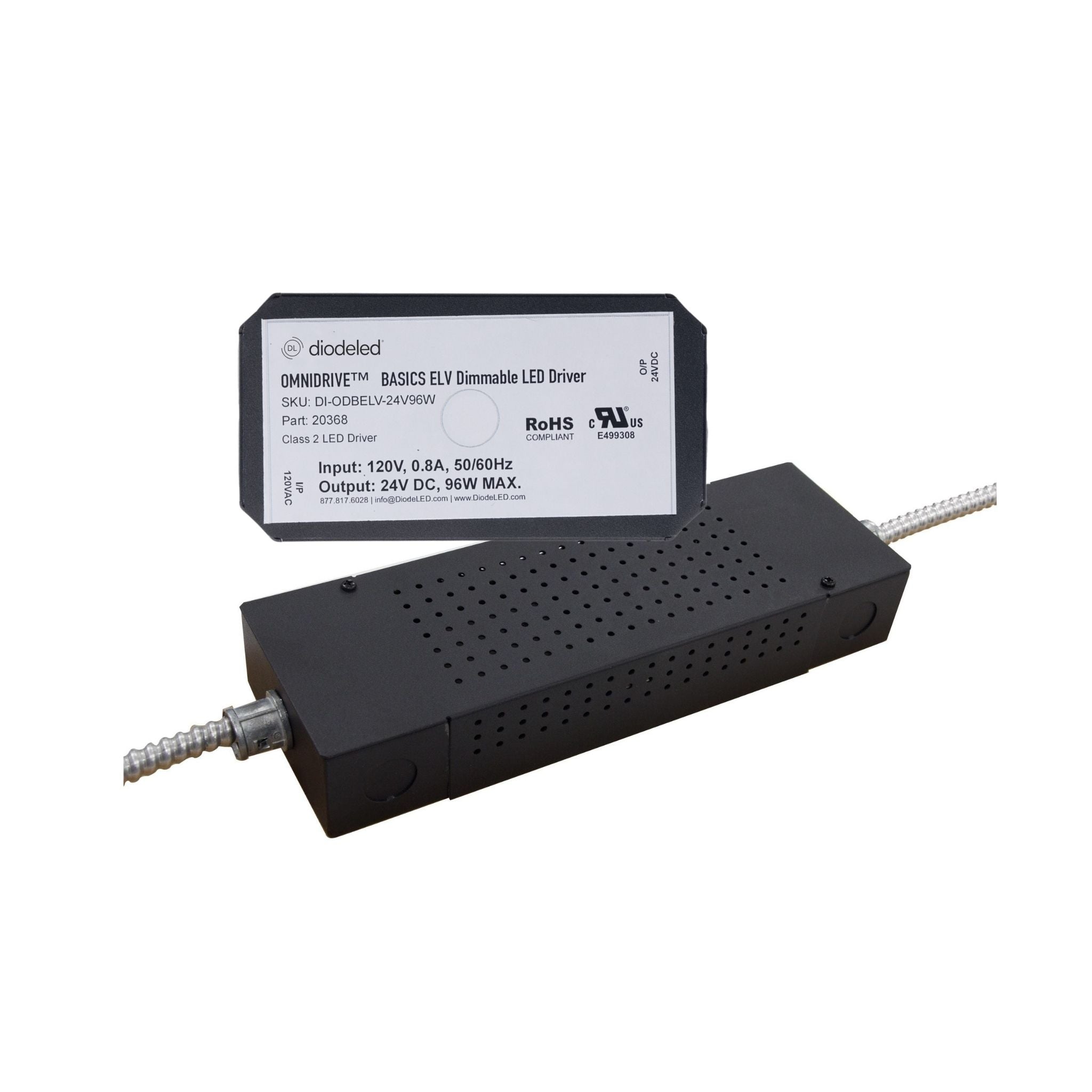

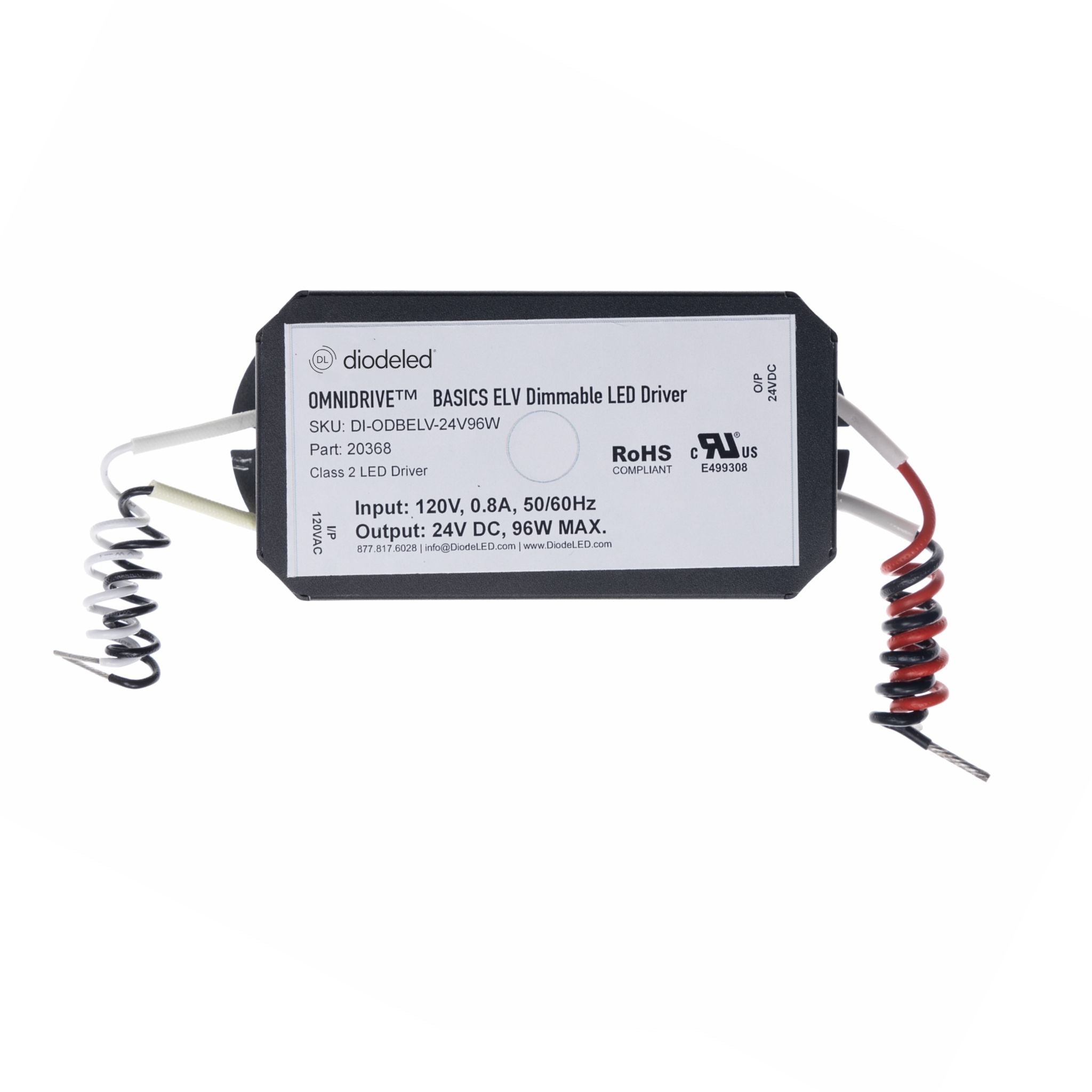

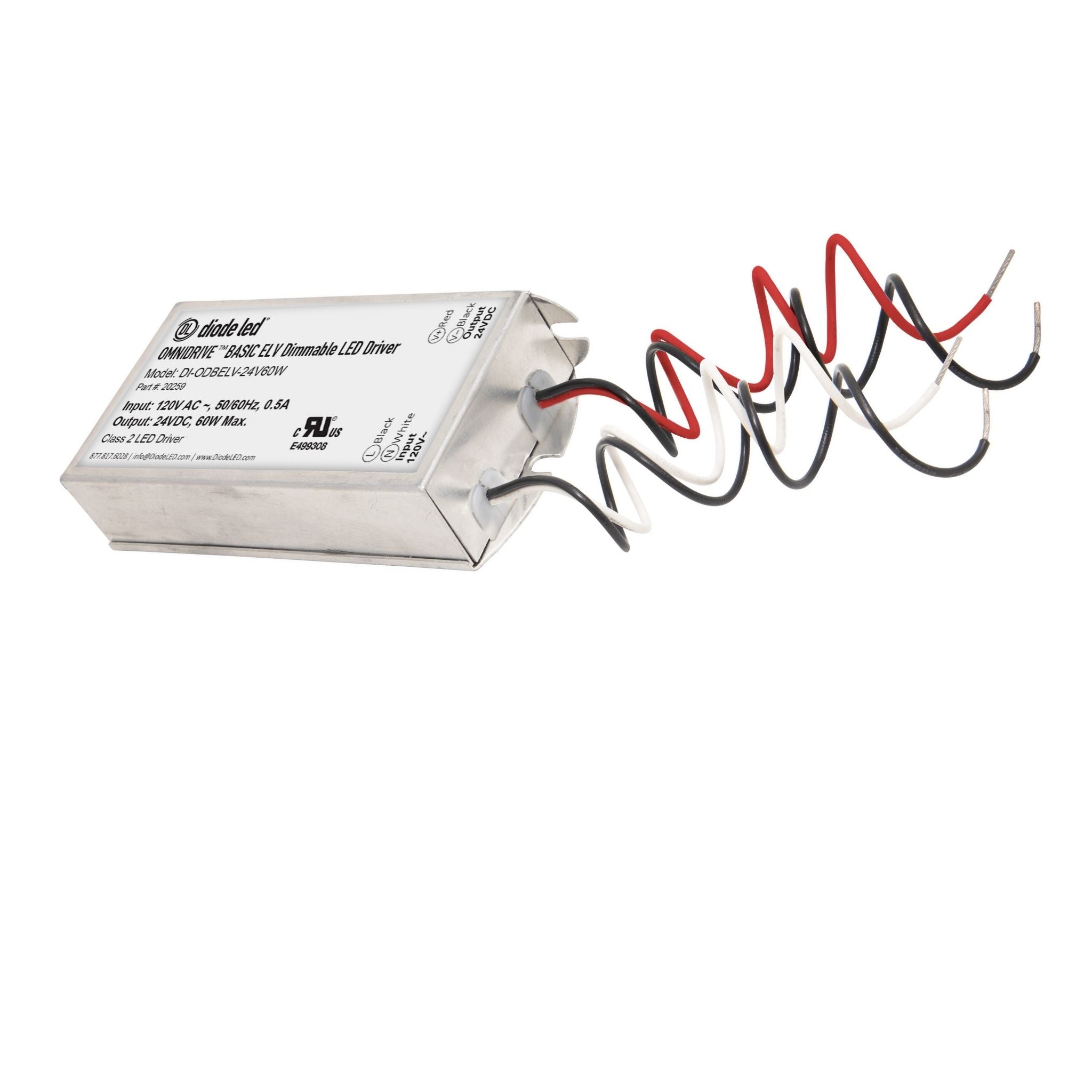

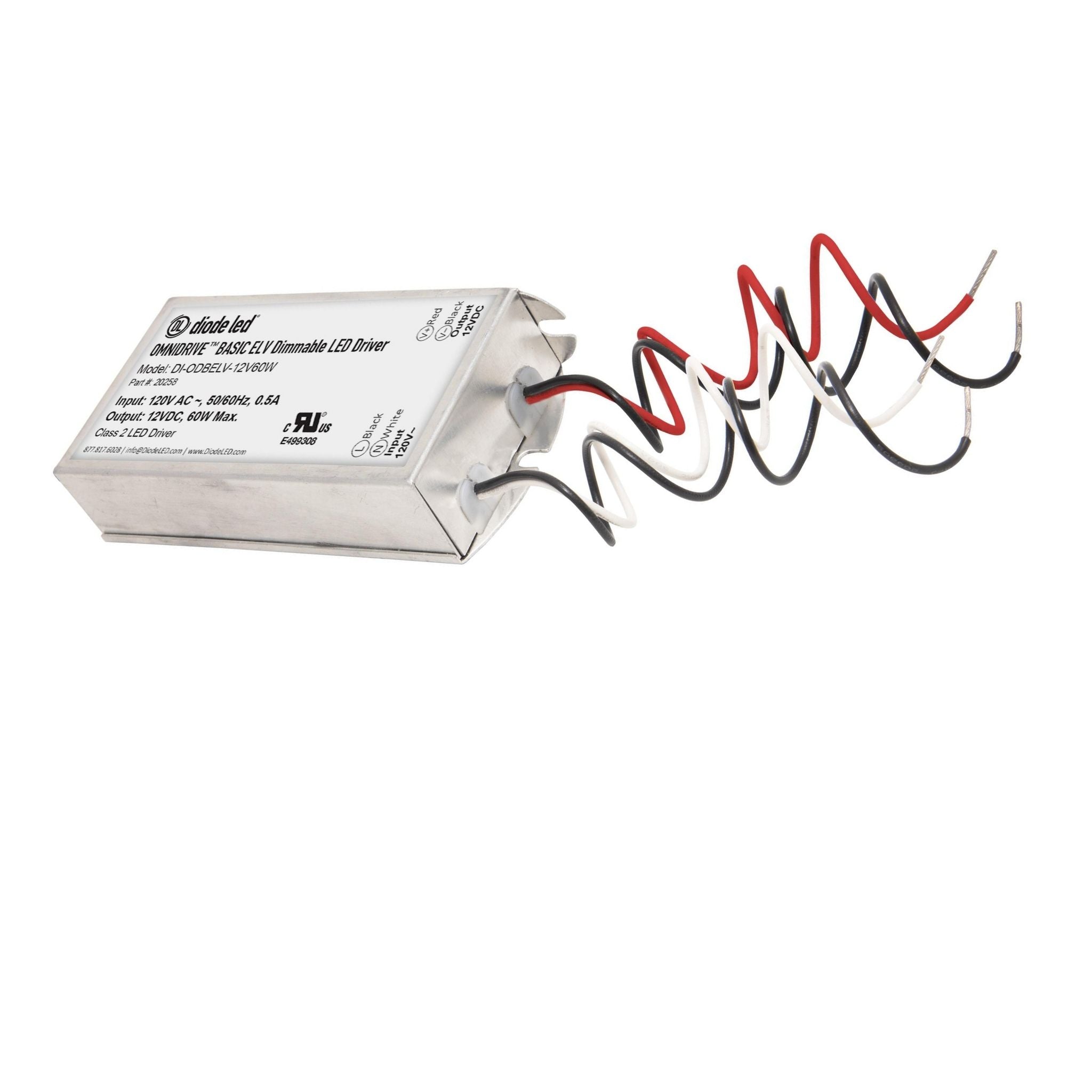

Diode LED ODBELV DI-ODBELV OMNIDRIVE® BASICS Electronic Dimmable Driver — 12V & 24V
The Diode LED DI-ODBELV OMNIDRIVE® BASICS is a compact Electronic Low Voltage (ELV) dimmable driver engineered for everyday LED tape lighting projects. Available in 12V and 24V configurations with 60W and 96W output options, this driver delivers smooth, reliable dimming down to 5% — with no minimum load required. Compatible with the most popular Lutron and Leviton dimmers, it is ideal for residential and commercial installations where simplicity and performance matter.
Key Features
- Smooth Dimming: ELV dimming down to 5% with no minimum load requirement for maximum flexibility.
- Voltage Options: Available in 12V DC and 24V DC output to match a wide range of LED tape systems.
- Wattage Options: Choose from 60W or 96W configurations to suit your project load.

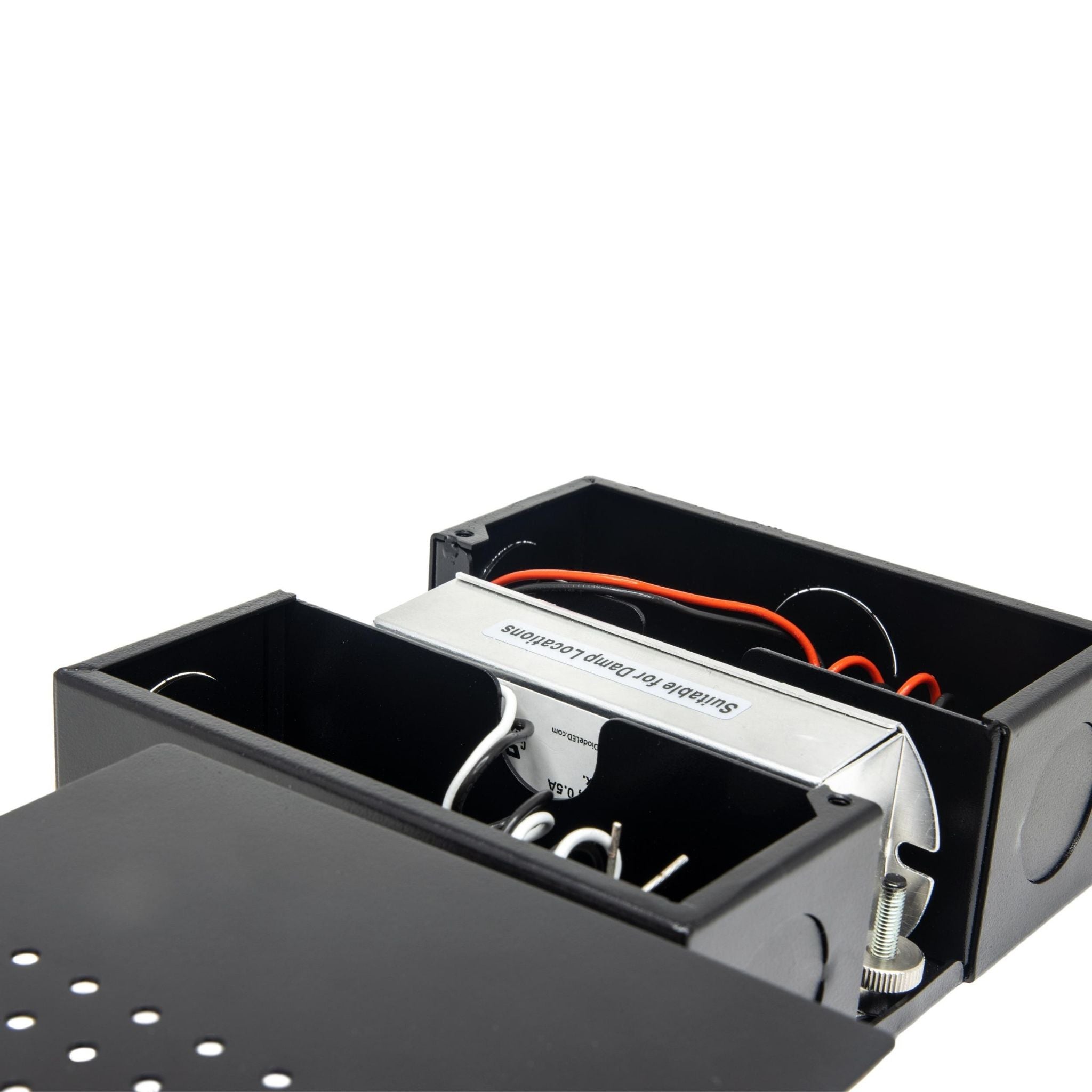

- Junction Box Option: Available with or without an optional UL Listed junction box for code-compliant installations.
- Dimmer Compatibility: Works with leading dimmers including Lutron Caseta, Diva, Maestro, Radio RA2, Homeworks QS, and Leviton Decora and Sureslide.
- Class 2 / Damp Rated: IP20-rated for indoor and damp location use; Class 2 certified for safe, low-voltage operation.
- 5-Year Warranty: Backed by Diode LED's industry-leading limited warranty.
Physical Design & Installation
The OMNIDRIVE® BASICS features a versatile, compact form factor that integrates easily into standard junction boxes or concealed spaces. Wire lead inputs and outputs (18AWG bare wire) simplify field connections, and the auto-reset protection (short circuit, overload, thermal) ensures long-term reliability.
Dimming & Controls
Compatible with ELV-type 120V AC dimmers. Recommended dimmers include Lutron Caseta PD-5NE, Diva DVCL-153-P, Maestro MAELV-600, MACL-153M, Radio RA2 RRD-PRO, Homeworks QS HORD 6ND, and Leviton DSE06-10Z and 6674-P.
Performance & Build
Input: 120V AC 50/60Hz. Efficiency up to >98% (12V models). Operating temperature: -22°F to 158°F (-30° to +70°C). Internal auto-reset protection against short circuit, overload, and thermal events. All models are Class 2 compliant.
Typical Applications
- Residential LED tape lighting installations
- Commercial accent and cove lighting
- Under-cabinet and architectural lighting
- Dimmer-controlled indoor LED systems
